NOV Brandt is one of the biggest oil service company & oil equipment supplier in the world. In Upstream drilling equipment, decanter centrifuge play key roles for drilling operation. NOV Brandt centrifuge have covered large scale of users in many different countries. Take example of HS-3400 centrifuge, it can be used to process unweighted and weighted drilling mud, it can also be used to process OBM, WBM and SBM drilling mud. According to different type gearbox, the brandt centrifuge can be defined to fully hydraulic centrifuge and electric motor driven centrifuges. In the HS-3400 centrifuge family, there are HS-3400FS, HS-3400FVS, HS-3400VSD and HS-3400VS

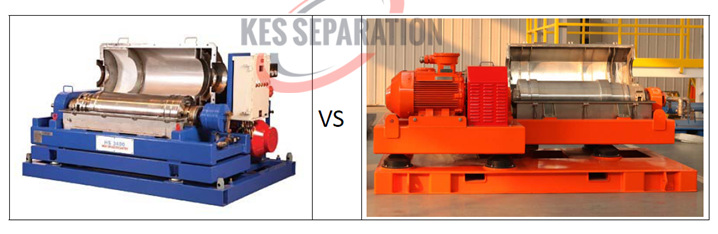

KES Separation is professional in oil & gas drilling equipment including Shale shaker, cyclones, decanter centrifuge, agitators, pumps etc. With deep understanding of the working principle and working conditions, KES Separation can offer purpose-target endurable centrifuge with competitive price. Following are comparison of Brandt HS-3400 centrifuge and KALW363 centrifuge.
Comparison Table of NOV Centrifuge and KES Separation Centrifuge:
| Model | HS-3400 centrifuge | KALW363 Centrifuge |
| Bowl Diameter | 14in | 14in |
| Bowl Length | 49.5in | 50in |
| LD Ratio | 3.5 | 3.5 |
| Max Speed | 3250RPM | 3200RPM |
| Max. G force | 3100 | 3063 |
| Normal Operation | 1500~3250RPM | 1500~3200RPM |
| Max. Processing capacity | 20~30m3/h | 20~30m3/h |
| Driven type | VFD or fixed speed | VFD or fixed speed |
| Gearbox Ratio | 52:1 | 57:1 |
| Gearbox Type | Two stage, planetary | Two stage, planetary |
| Main motor | 30kw | 30kw |
| Back drive motor | 11kw | 11kw |

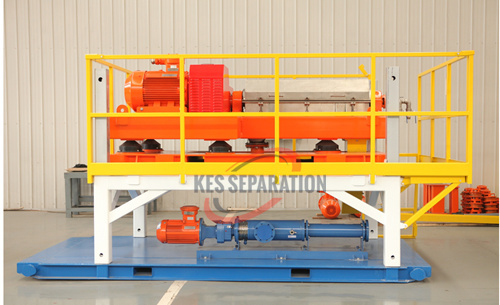

From above parameters table list, we can see there is little difference between HS-3400 centrifuge and KALW363 centrifuge. With better delivery time and better price, KES Separation centrifuge can give better support to customers. Another, we can offer speed regulation Mono pump which can work together with fixed speed centrifuge. The Mono pump flow rate can be adjusted by the regulation wheel in very convenient way. This type Mono pump is similar to Netzsch Nemo pump. For offshore drilling operation, we can offer DNV certified containerized centrifuge and feed pump, the DNV certificate equipment will be definitely accepted by project owners. For more request, pls contact us by drop email to us, sales@kesseparation.com or info@kesmiop.com.
