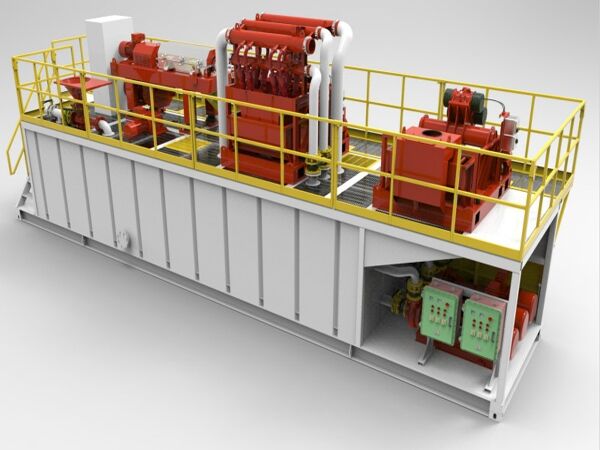

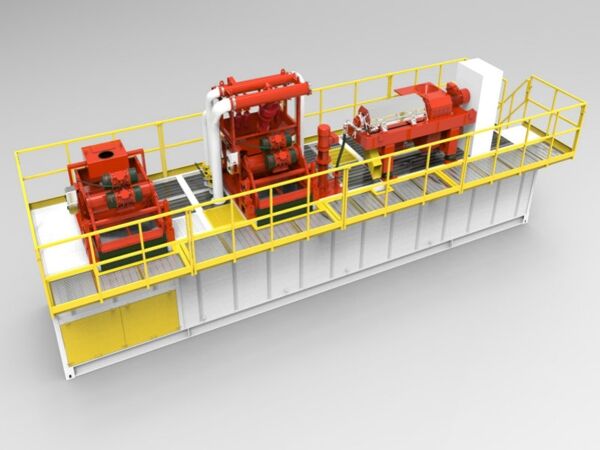

CBM Mud System
CBM and Geothermal Drilling Rig required similar mud cleaning system to clean and recover the drilling mud for the continuously drilling operations. We can offer standard and customized mud cleaning system to meet the different requirement from clients.
Product Features
Similar to HDD Mud System, CBM and Geothermal Drilling Rig required similar mud cleaning system. KESMI is a professional manufacturer of mud recycling system. Key equipment includes shale shaker and desanding mud cleaner. After treatment, big size solids particles are separated, clean drilling mud will be pumped back for reuse. After many years’ experiences, we can offer standard mud cleaning system as below table, we can also customize CBM mud system and geothermal drilling mud system according to customer requirement.
KSMS-500A Mud System suitable for 40HC container shipment:
| S/N | Product | Qty | Tank Size (mm) | Weight (T) |
| 1 | Shale Shaker | 1 | 10000x2100x1894 | 13.6 |
| 2 | Mud Cleaner | 1 | ||
| 3 | Centrifugal Pump | 3 | ||
| 4 | Agitator | 1 | ||
| 5 | Mud Hopper | 1 |
KSMS-500B Mud System with ISO container corner, convenient for truck transportation
| S/N | Product | Qty | Tank Size (mm) | Weight (T) |
| 1 | Shale Shaker | 1 | 12192x2438x2088 | 18.1 |
| 2 | Mud Cleaner | 1 | ||
| 3 | Centrifugal Pump | 3 | ||
| 4 | Agitator | 2 | ||
| 5 | Mud Hopper | 1 |
Technical Features of KESMI CBM Mud System:
- Can effectively control drill fluids performance, reduce the drill-jamming accidents and improve pore-forming quality;
- Can save bentonite and barite; drastically reduce the waste mud transportation cost;
- The effective separation of soil slag by equipment will help to improve pore-forming efficiency;
- The slurry closed cycle purification mode and lower slag moisture content reduce the impacts to environment;
- Safe and easy operation, simple maintenance, stable and reliable operation.
- Reasonable design with compact structure and small footprint
