Product Features
KESMI desander is the second-stage and the third-stage solid control equipment to treat the drilling fluid. According to the size of the cone diameter, it is divided into Desander and Desilter. Usually the cone diameter more than 6’’ is called Desander, and used as the second stage control equipment in drilling operation. We commonly used 8 “and 10” cones desander to separate solid-phase particle size 47-76μm in the drilling fluids.

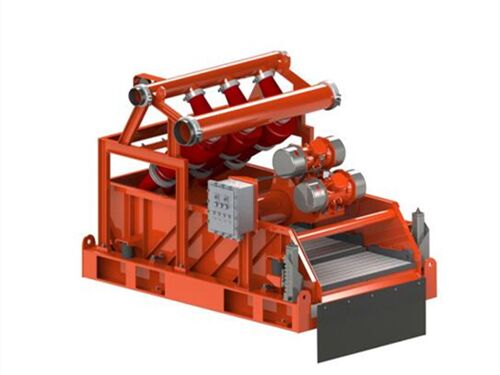

Abrasion resistance polyurethane hydro-cyclones are applied to the unit. The unit can be stand alone for use or assembled above shale shaker through pre-designed connectors. The number of desander cones is customizable according to the work conditions.

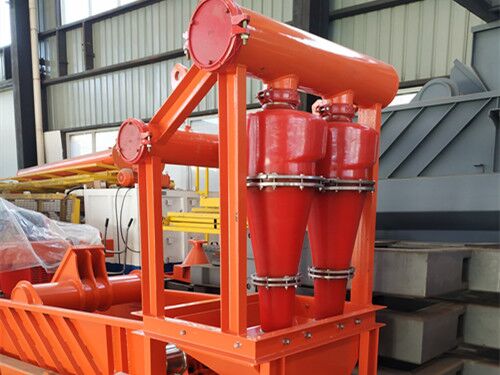

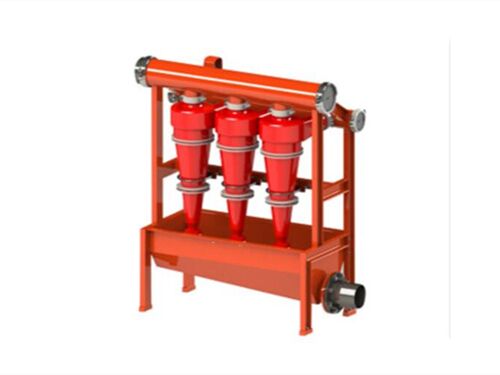

Technical parameters of desander cyclones:
| Model | Capacity | Desander Cone Size | Number of Desander | Working Pressure | Feeding/Output |
| 1S | 120 (m3/h) | 10 (in) | 1 (ea) | 0.25-0.4 (Mpa) | 6 / 8 (in) |
| 2S | 240 (m3/h) | 10 (in) | 2 (ea) | 0.25-0.4 (Mpa) | 6 / 8 (in) |
| 3S | 360 (m3/h) | 10 (in) | 3 (ea) | 0.25-0.4 (Mpa) | 6 / 8 (in) |
Technical parameters of desander cleaner:
| Model | KSZJ112-1S/2S | KSZJ113-1S/2S/3S | KSZJ114-2S/3S |
| Treating capacity (m3/h) | 120/240 | 120/240/360 | 240/360 |
| Desander Cyclone Size | 10″ | 10″ | 10″ |
| Desander Cyclone Qty | 1/2 | 1/2/3 | 2/3 |
| Work Pressure(Mpa) | 0.25-0.40 | 0.25-0.40 | 0.25-0.40 |
| Inlet Size/outlet size | 6’’ / 8’’ | 6’’ / 8’’ | 6’’ / 8’’ |
| Matching Shaker | KSZS112 | KSZS113 | KSZS114 |
| Weight(kg) | 1048/1105 | 1490/1550/1610 | 1762/1822 |
| Dimensions(mm) | 1718x1470x1615 | 2058x1762x1820 | 2650x1762x1820 |
Technical features of mud desander hydrocyclones
- Sand size solids removal (40 ~ 100 microns)
- 100% polyurethane hydrocyclone
- 500gpm per cone at 75 feet of head
- Flexible fast connection is available for user to assemble
- Compact design, small footprint
