Product Features
Single Screw pump also called Progressive Cavity pump. Screw pump have many special technical advantages over other type pump and screw pump have much wide application range.The screw pump can transfer the liquid continuously without pulse, and with stable discharging pressure. By selecting proper materials for pump stator and rotor, the screw pump can be applied for many industries.

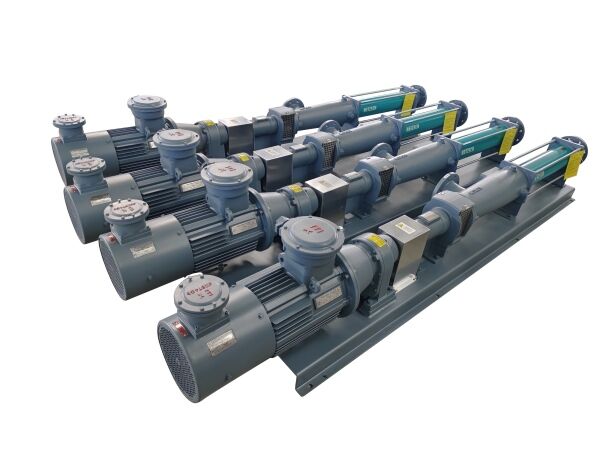

International brand screw pump like Netzsch Nemo pump or NOV Brandt Mono pump, they are both single screw pump suitable for drilling mud transportation. KESMI Screw pump have similar technical features with NBR stator and stainless-steel rotor to get reliable working performance. In oilfields, the screw pump has many functions as follows:

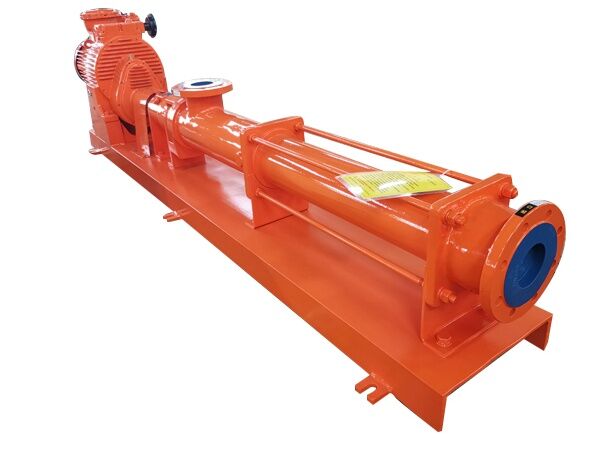

- Suction the drilling mud and feed to decanter centrifuge;
- Working as flushing pump to flush the screen basket of vertical cutting dryer;
- Ideal pump to work with dewatering unit ;
- Ideal pump to transfer the drilling mud or oily sludge with higher solids content.
Technical Parameters of Screw Pump
| Model | Flow
(m3/h) |
Pressure
(Mpa) |
Motor
(kw) |
Max. Speed
(rpm) |
Inlet/Outlet
(in) |
Weight
(kg) |
Dimension
(mm) |
| KSG10-040 | 10 | 0.3 | 4 | 244 | 3 / 3 | 245 | 2245x320x550 |
| KSG20-055 | 20 | 0.3 | 5.5 | 210 | 3 / 3 | 323 | 2450x340x562 |
| KSG30-075 | 30 | 0.3 | 7.5 | 258 | 4 / 4 | 386 | 2761x370x600 |
| KSG40-110 | 40 | 0.3 | 11 | 252 | 5 / 5 | 454 | 3270x370x665 |
| KSG50-110 | 50 | 0.3 | 11 | 273 | 5 / 5 | 608 | 3790x400x782 |
| KSG60-150 | 60 | 0.3 | 15 | 225 | 5 / 5 | 649 | 3322x550x740 |
| KSG70-220 | 70 | 0.3 | 22 | 230 | 6 / 6 | 875 | 3740x420x785 |
| KSG80-220 | 80 | 0.3 | 22 | 283 | 6 / 6 | 875 | 3740x420x785 |
| KSG90-220 | 90 | 0.3 | 22 | 205 | 6 / 6 | 875 | 3740x420x785 |
Technical Features of Screw pump
- Low pulse transportation of drilling mud, very stable feeding to centrifuge
- High pressure discharge or low pressure discharge for option
- With less accessories, compact structure, easy maintenance
- Compared with the centrifugal pump, screw pump can achieve stable linear flow
- Can transport mixed impurities containing gas and solid particles or fibers
- Single screw pump can transport a variety of corrosive substances
- Single screw pump can transport high viscosity material
- Screw pump can be used for pharmaceutical filling and metering
