Filtration Unit
KESMI has rich experience in the design and manufacturing in oilfield equipment. All new features are based on customer feedback and combined in our unique twin vessel filter unit. HSE, efficiency and reliability are the key drivers for our product improvement and design.
Product Features
KESMI has rich experience in the design and manufacturing in oilfield equipment. All new features are based on customer feedback and combined in our unique twin vessel filter unit. HSE, efficiency and reliability are the key drivers for our product improvement and design.

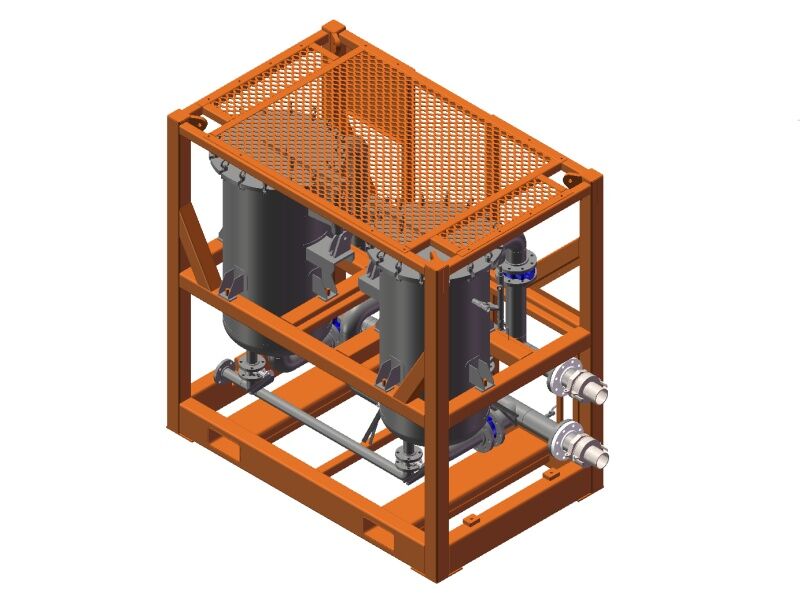

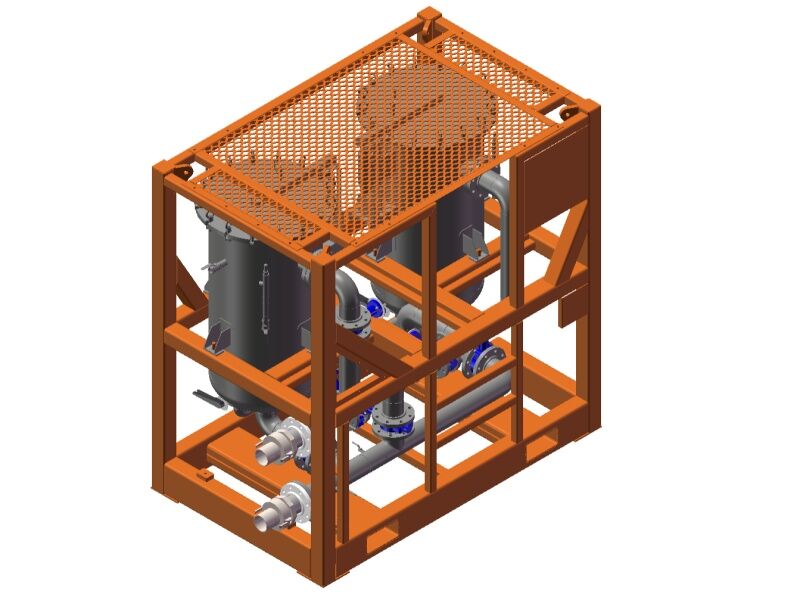

KESMI dual vessel filtration unit allows the operator to open and close the filter vessel quickly and safely forc hanging the filter cartridges. The unit is designed and built in accordance with DNV 2.7/IS010855/ EN12079 and certified by DNV or Lloyds.
Technical Parameters of Dual Vessel Filtration Unit:
| Model | KSDP-600 |
| Vessel number | 2 No vessels with dual skid mounted structure |
| Vessel body diameter | 600mm |
| Filtration fluids | Brine and drilling fluids |
| Number of cartridges per vessel | 50 catridges |
| Max. recommended flow | 600 gpm |
| Design pressure | 10 bar |
| Normal operating pressure | 7 bar |
| Max. working temp. | 100 ℃ |
| Housing material | SS316L |
| Nozzle /pipeline | SS316L |
| Lifting frame | DNV2.7-1 certificate |
Technical Features of Dual Vessel Filtration Unit:
- Small size, compact footprint
- Quick opening and close lid
- Frame designed and certified by DNV2.7-1
- All wetted parts made by SS316
