Product Features

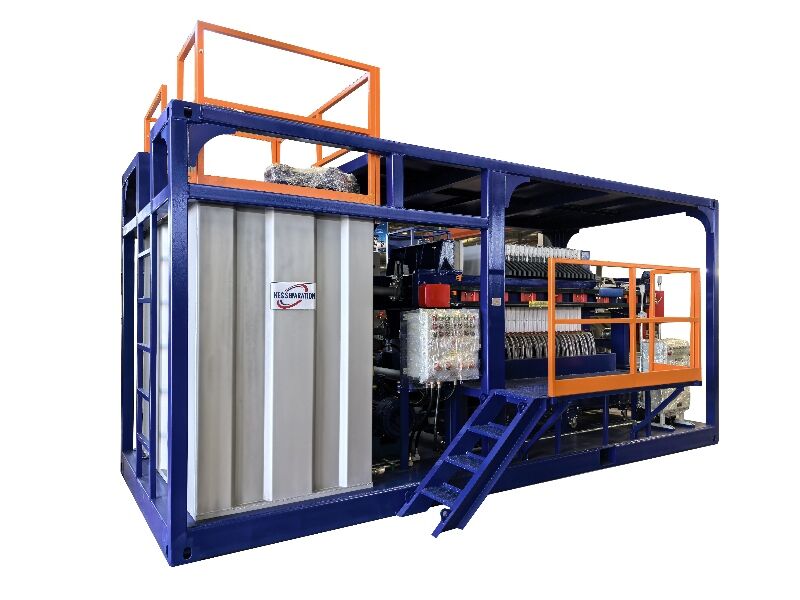

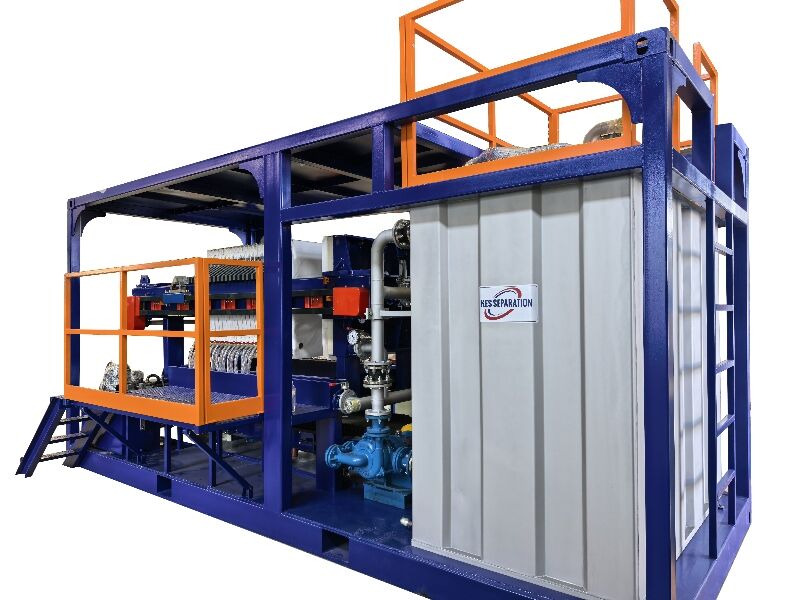

FP WBM Dewatering unit is a system by using Filter Press to achieve the solids-liquid separation. It is specialized designed for Spent water-based mud dewatering. After dewatering, the user can get thickened mud cake for easy disposal and clean water for other application. The FP WBM dewatering unit is widely used to treat the Spent WBM in mud pit during drilling operations. The drilling operator can also dump the spent WBM in one big tank for temporarily storage and treat it quickly by FP WBM dewatering unit.
The FP WBM dewatering unit can be used for both onshore and offshore application. FP WBM dewatering unit is portable design, can be used for waste water treatment, livestock farms waste water treatment, mining tailings dewatering and other similar applications. The FP WBM dewatering unit has different size to cater for different request.
The models of KESMI FP WBM Dewatering Unit
| Model | KFPDU-05 | KFPDU-15 | KFPDU-25 |
| Solids concentration | 10% | 10% | 10% |
| Capacity | 5m3/h | 15m3/h | 25m3/h |
| WBM feed pump | 5.5KW, 30m3/h | 7.5KW, 60m3/h | 11KW, 80m3/h |
| WBM agitator | 3kw X 2 | 7.5KW X 2 | 11KW X 3 |
| Dosing pump | 0.75KW | 0.75KW X 2 | 1.5KW X 2 |
| FP Feed pump | 22KW, 25m3/h | 22KW, 25m3/h | 37KW, 50m3/h |
| Filter Press | 4.75kw, 35sqm | 6.25kw, 100sqm | 6.25kw, 200sqm |
| Belt Conveyor | 3kw, 3550mm | 4kw, 5200mm | 4kw, 6200mm |
| Total Power | 36KW | 56.25KW | 94.25KW |
| Foot print | 1x20ft container size | 1x40ft container size | 2x40ft container size |
| Overall size | 6058 X 2438 X 2850mm | 12192 X 2438 X 3000mm | 12192 X 2438 X 3000mm x2 |
| Weight | 9500 kg | 14500kg | 25500 kg |
| Rain-proof | optional | optional | optional |
Main technical features of KESMI FP WBM Dewatering Unit
- Rich experience in both design and production
- Mature design to guarantee on the performance
- Compact design with smaller footprint
- Heavy duty feed pumps for longer service time
- Specialized design filter press fit for the WBM
- Easy maintenance and quick delivery spare parts service
- Different models to meet different requirement
- Bespoken solutions available per request from customer
Main equipment list in the FP WBM dewatering unit
| SN | Product | Application |
| 1 | Submersible slurry pump | used to transfer the spent WBM from mud pit to our system |
| 2 | Mud dosing unit | The dosing unit include dosing barrel, dosing agitator, level meter and dosing pump, used for flocculation and mixing with spent WBM |
| 3 | FP Feed pump | Specialized centrifugal pump working as feed pump to Filter Press |
| 4 | WBM Filter Press | Special customized WMB Filter press to press the spent WBM after coagulation and flocculation. |
| 5 | Belt Press | Belt conveyor installed beneath the filter press to transfer the mud cake out of the skid |
| 6 | Mud Skips or woven bags | Mud Skips or woven bags will be required to collect the dry mud cakes, not included in our standard proposal, for optional |
| 7 | Water tank | Water tanks may be required to collect the clean water discharged from filter press, not included in our standard proposal, for optional |
| 8 | Remarks | Bespoken solutions can be provided per request |
FP WBM dewatering unit compared with DC WBM dewatering unit
- With same equipment investment, the treating capacity of FP WBM dewatering unit is bigger.
- FP WBM dewatering unit is Batch operation, lower investment, lower automatic level, need 2~3 operators.
- FP WBM dewatering unit operation requires professional personnel to operate the dosing unit and filter press;
- The foot print of FP WBM dewatering unit is normally bigger than that of centrifuge unit.
- Both of the solutions will be provided by long-term technical support and spare parts support
