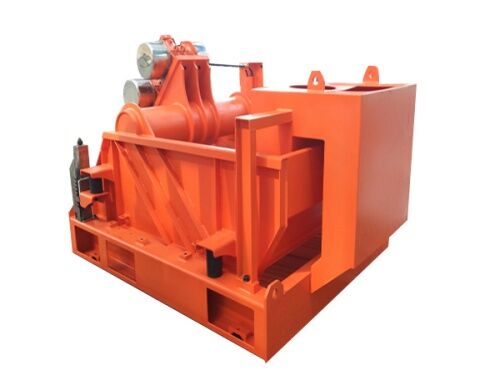

High G Dryer
Drilling Mud Shale shaker is the first phase screening & separation machinery in solids control system. High G dryer is shaker with bigger vibration motor power and can generate higher G-force, that is the equipment name where it from. With over 10years experience in design and manufacturing, KESMI heavy duty shale shaker and High G dryer is able to working in most hazardous area for both onshore and offshore drilling activities.
Product Features
Drilling Mud Shale shaker is the first phase screening & separation machinery in solids control system. High G dryer is shaker with bigger vibration motor power and can generate higher G-force, that is the equipment name where it from. With over 10years experience in design and manufacturing, KESMI heavy duty shale shaker and High G dryer is able to working in most hazardous area for both onshore and offshore drilling activities.
During the oil drilling mud system, the cuttings discharged from shaker unit normally need to be further separated and recover the based mud for reuse. Meanwhile, the cuttings could be much dry after further treatment. The dry cuttings are reduced in total volume which help the easy transportation from rig site to center handling point, like Thermal Desorption Unit or other kinds of oily cuttings treatment system. High G dryer or High G shaker is very popular to stand by the shaker unit and work for recover the base mud from the shaker discharges.
Technical Parameters of High G Dryer:
| Model | KSZS114-HG |
| Vibrating Mode | Linear motion |
| Max. Capacity (m3/h) | 140 |
| Vibrating Motor (kw) | 2×1.94 |
| Adjusting G force (G) | ≤8.0G |
| Vibration Amplitude (mm) | 4.4~6.34 |
| Deck Adjustment | -2°~+5° |
| Screen Qty (pcs) | 4 |
| Screen Size(mm) | 585×1165 |
| Screen Area (m2) | 2.73 |
| Weir Height (mm) | 885 |
| Weight (kg) | 1520 |
| Dimension(mm) | 2312x1893x1400 |
Technical Features of High G Dryer:
- Liner Motion, Balance Elliptical Motion and Dual Motion available.
- Capable to deal with heavy mud in large feeding capacity
- Shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.
- Shale shaker bottom deck made from Stainless Steel for long service life.
- Heat treatment on complete shale shaker deck for High G force operation.

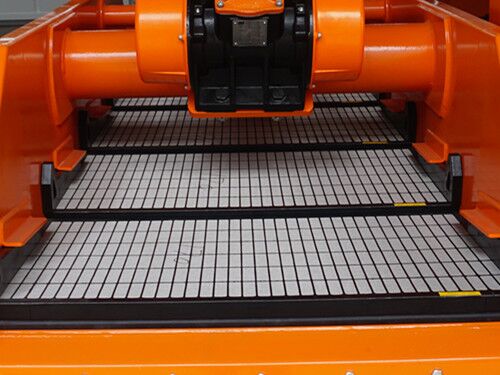

- Pretension shaker screen for fast screen replacement, shaker size equivalent to Swaco Mongoose
- Famous Brand Vibration Motors: Italy OLI or US Martin brand motors

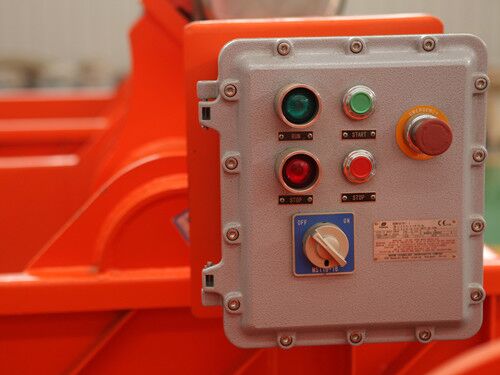

- Main electrical components are sourced from premium brands: SIEMENS, Schneider or ABB available
- Different type shaker available for different application
