Mud Gas Separator

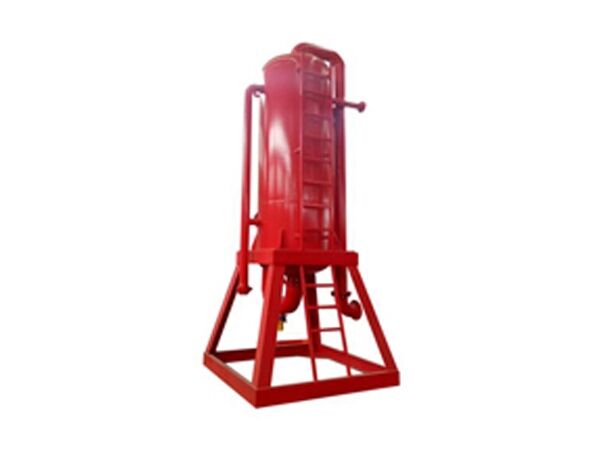

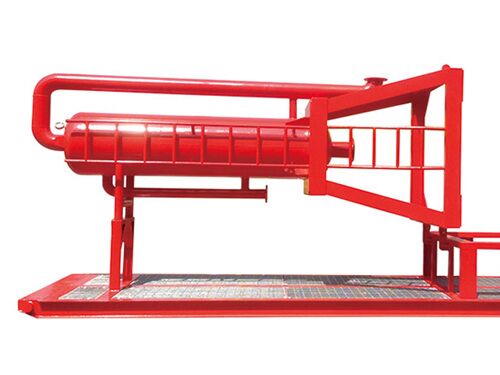

Mud Gas Separator is commonly called poor boy degasser. Mud Gas Separator is a special equipment to handle the invaded gas of the drilling fluid. Density and viscosity of the drilling fluid will greatly be influenced by the invaded gas. In some dangerous situation, it can lead to the accident of well kick or blowout. The combination of mud gas separator and flare ignition device can effectively handle the invaded gas. Mud gas separator is widely used in the global oil & gas drilling industry.

Mud gas separator captures and separates large volume of free gas in the drilling fluid. If there is a “KICK” situation, this vessel separates the mud and the gas by allowing it to flow over baffle plates. The gas will be forced to flow through a line and vent it to a flare.

A “KICK” situation happens when the annular hydrostatic pressure in a drilling well temporarily (and usually relatively suddenly) falls below that of the formation, or pore, pressure in a permeable section downhole, and before control of the situation is lost.

Technical Parameters of Mud Gas Separator:

Model	KSZYQ800	KSZYQ1000	KSZYQ1200
Main body diameter	800mm	1000mm	1200mm
Capacity	180~240m3/h	260~320m3/h	300~360m3/h
Design Pressure	1.6~6.4Mpa	1.6~6.4Mpa	1.6~6.4Mpa
Wall Thickness	10mm	10mm	10mm
Inlet Pipe	4in	4in	5in
Outlet for Liquid	10in	10in	10in
Outlet for gas	6in	8in	8in
Weight	1800kg	2000kg	2500kg
Dimension	2000x2000x5070mm	2000x2000x5680mm	2200x2200x6634mm
Certification	GB150/ASME	GB150/ASME	GB150/ASME

Technical Features of Mud Gas Separator:

• Material: SS304 or Q345 from China Top Steel Manufacturer
• The whole body: The mud gas separator with the process of the grinding, sand blasting,
• 3 layers of painting: epoxy zinc painting as the primer, the epoxy painting as the middle coating, and the polyurethane for the final painting.
• Separates and discharges the enormous free gas from drilling fluids, including poisonous gases like H2S.
• Separated gas is carried by discharge lines to a safe area for combustion.
• The unit is ruggedly built and coated with anti-corrosion epoxy so as to ensure long service life when processing hazardous and toxic gases.

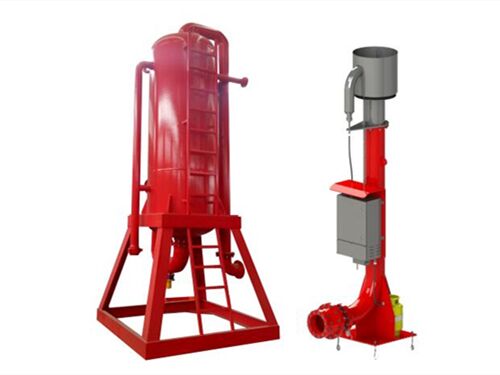

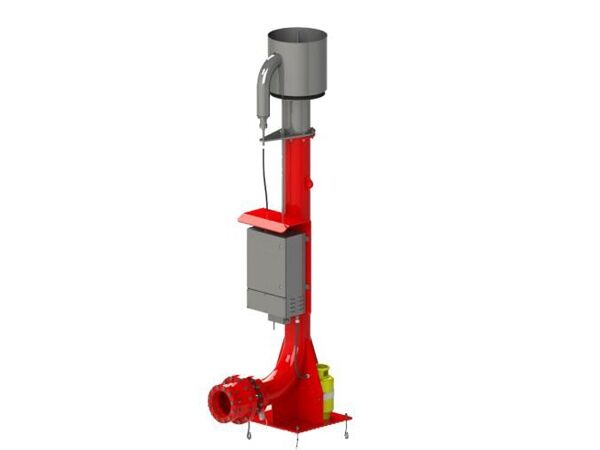

Flare ignition device is a special oil drilling equipment to handle the invaded gas, it is also an effective equipment to handle the tail gas and invaded natural gas in refinery and natural gas collecting and distributing station.It can ignite the harmful invaded gas to eliminate the hazards to the environment, also it is a security environmental protection equipment. This equipment can match with mud gas separator, and is usually used in oil & gas drilling and CBM drilling. The flare ignition device is classified by two kinds: wired remote control and wireless remote control.

Technical Parameters of Flare Ignition Device:

Model	KSYD203
Diameter of burner	DN200 /DN150
Burner height	3m
Ignition voltage	16KV
Ignition frequency	100~1000times/min

Technical Features of Flare Ignition Device:

• Pickling Phosphating: Heat treatment of complete deck, pickling phosphating, hot dip galvanizing
• Painting: Heavy anti-corrosion paint adopt national famous Brand
