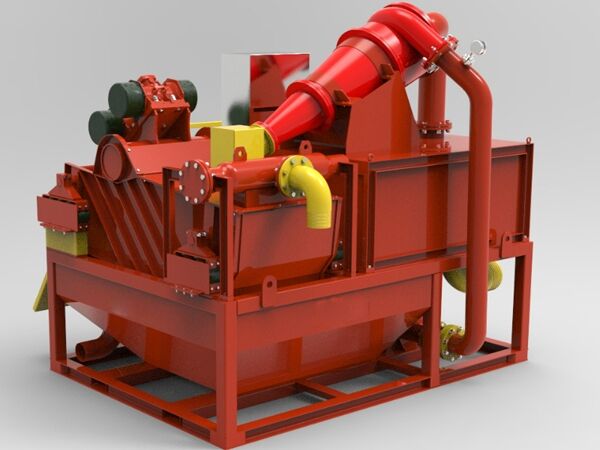

TBM Desanding Plant
The desanding plant has wide applications in construction mud treatment and engineering mud recycling. It help to recover more useful drilling fluids, reduce the chemical cost and reduce environmental impact.
Product Features
KESMI shield tunneling desanding plant, can also called TBM desanding plant or piling desanding plant or mud water separation plant or construction mud desander. The desanding plant has wide applications in construction mud treatment and engineering mud recycling. KESMI Slurry Separation system is a necessary equipment of foundation construction, used for pile foundation projects adopting slurry hole/tunnel wall supporting, rotary drilling rig, circular drilling technology; Diaphragm wall project and slurry purification recycling of slurry pipe-jacking construction, with the features of reducing construction cost, increasing construction efficiency. KESMI Desanding plant can control the mud performance, increase drilling efficiency, save drilling cost and minimize environmental impact.
Technical Parameters of KESMI Desanding Plant:
| Model | Feeding Capacity (m3/h) | Sieving capacity (m3/h) | Max. moisture content | Mud max. SG
(g/cm³) |
Power
(kW) |
Particle Size
(μm) |
Dimensions
(mm) |
Weight
(t) |
| KANS20-30 | 20 | 5~10 | ＜30% | ＜1.4 | 9 | 30 | 2055x1730x2240 | 2 |
| KANS50-30 | 50 | 5~15 | ＜30% | ＜1.4 | 12.5 | 30 | 2055x1730x2240 | 2.2 |
| KANS100-60 | 100 | 20~50 | ＜30% | ＜1.4 | 24 | 60 | 2862x1676x2433 | 3 |
| KANS150-60 | 150 | 20~50 | ＜30% | ＜1.4 | 32 | 60 | 2862x1676x2433 | 3 |
| KANS200-60 | 200 | 25~80 | ＜30% | ＜1.4 | 48 | 60 | 4522x2192x2903 | 5.5 |
| KANS260-60 | 260 | 25~80 | ＜30% | ＜1.4 | 58 | 60 | 4522x2192x2903 | 5.8 |
| KANS400-60 | 400 | 75~240 | ＜30% | ＜1.4 | 100 | 60 | 10705x4144x6536 | 20.2 |
Technical Features of KESMI Desanding Plant:
- Extremely compact construction with heavy duty shaker and desander cyclones.

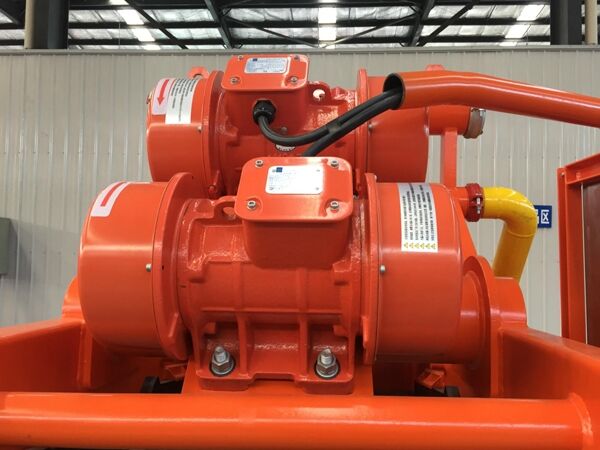

- Shaker with reinforced structure G-force up to 7.0G and Italy OLI or US Martin brand vibration motor
- High quality PU desander cones or desilter cones with 4in, 6in, 8in, 10in, 12in, 16in and 20in for optional
- Customized slurry transfer pump with better anti-wearing and anti-corrosion performance.
- Control panel is equipped with Germany Schneider or Siemens components.
- Control cabinet with VFD or soft starter for easy and safe starting of desanding plant, for optional.
